RGBW LED Wash Light

Info shortcuts
  • High-performance IP66 RGBW light source with 24 LEDs
  • Flicker-free / Programmable scenes
  • 56706 lux at 5 meters / 2615 verified lumens
  • DMX, RDM and wireless control
  • 2000K - 10000K CTC control
  • 2.3º native beam angle / 3.2ºx3.4º optional diffuser
  • Accurate 16bit dimming performance
  • Practically maintenance-free

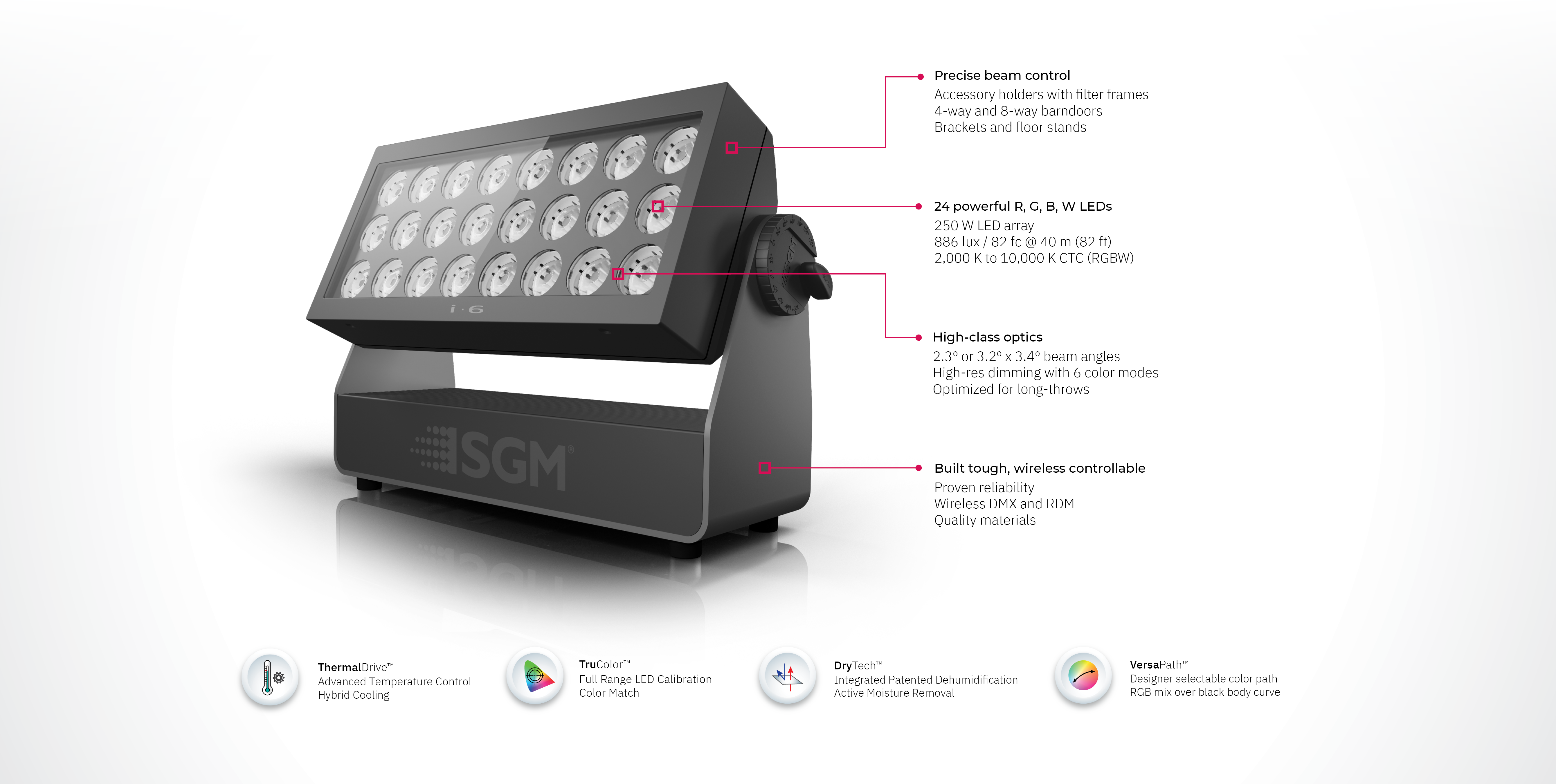

The i-6 is a narrow-beam wash which provides long-throw performance. Its tight beam can deliver a remarkable amount of light and powerful colors exactly where needed, reaching the furthest parts of your installation, while avoiding light pollution. It is a single-head, compact LED luminaire that establishes a new benchmark for wall washing and accent lighting, thanks to its advanced optical design.

Long-throw performance in a low-profile form
Delivering 1,575 lux / 146 fc* at 30 m / 98.5 ft.distance, the i-6 is a single-head, compact LED luminaire that establishes a new benchmark for wall washing and accent lighting, thanks to its advanced optical design. With adjustable power consumption, and a weight of just 14.5 kg (31.9 lbs), the i-6 is a precise yet flexible tool for architectural lighting. The LEDs expected lifetime is 50,000 hours.

2.3º and 3.2º x 3.4º option
With a difference of just 1.9 degrees* between beam and field angle, the i-6 is the most accurate long-throw wash in the SGM portfolio. This narrow beam projection is the optimal solution t o avoid light spill. Combined with the other native beam angles of the SGM i, P and Q Series, the i-6 completes the wash fixture package as a precise, special-purpose luminaire.

Extremely bright whites, and powerful colors

The i-6 includes 9 single-color white LEDs which deliver an impressive punch, even in the most challenging conditions. Its RGBW LED layout is based on SGM TruColor™ technology and is optimized for delivering the brightest saturated colors, while enhancing the overall performance when using color temperature control. The i-6 incorporates the SGM color palette and is fully compatible with all SGM RGB-based washes. The i-6 also features the new SGM VersaPath™, 6 color mixing modes, and 12 dimming curves.

NextGen design platform with unique SGM technologies
Reliability is central to the design of the i-6. With an IP66 rating, integrated dehumidifier via the SGM DryTech™ system, and a sealed IP67 base, the i-6 is a very durable fixture. Additionally, the i-6 POI encompasses next-gen ThermalDrive™ management, a 5-year warranty, CX marine corrosion protection, and sensor monitoring over wireless RDM. Made in Denmark with premium components and extensive testing, the i-6 goes beyond high-quality manufacturing.

Full control via Studio Mode
The i-6 includes the powerful SGM DMX Studio Mode, expanding its capabilities through a number of advanced features. Select different dimming curves, choose your preferred RGB CTC, RGBW CTC, CMY, HSI or XY color mode, adjust fan speed to reduce noise, change the LED frequency rate, and increase or reduce the peaks of green in the white output. Learn more about the SGM Studio Mode by reviewing the DMX chart in the "Download" section.

IP rating
The durable IP66-rating of the i-6 ensures that the unit is kept free from externally induced particles and liquids, such as smoke fluid, dust, dirt, airborne pollution, and humidity. It is ideal for outdoor applications, while being practically maintenance-free makes it a sustainable and long-lasting choice for indoor events and installations as well.

The internal built-in dehumidifier protects this fixture from moisture, pollution and any other factors that can generate corrosion. The patented SGM dehumidification, not only removes humidity, but also prevents oxidation and condensation, while a gore-tex membrane equalizes internal pressure to prevent leaks. Learn more about dehumidification

Thermal management
To achieve optimum performance of the LEDs at all times, this bright and accurate luminaire is optimized to manage heat impact through SGM's unique thermal management technology. The technology consists of a uniquely designed body and heat sink, which ensures optimal cooling of the LED chips. Additionally, the special aluminium alloy and surface treatment ensures maximum heat dispersion while the fan-assisted cooling ensures optimal performance at any time and under any conditions (such as variable temperatures, limited airflows, confined installation spaces, etc.).
Like all SGM products, the i-6 consists of SGM's superior thermal management technology and it is tested under extreme hot and cold conditions, which ensures that the LEDs always operate within safe parameters. Learn more about SGM thermal management.

Mounting options
Because of its integrated handle and included omega brackets, the SGM i-6 is easy to transport, to rig, and to focus. It can be orientated in any position and it comes with 2 x 2 ¼ turn locking points to allow the use of one or two clamps. The built-in safety wire eyelet in the base protects the unit when rigged.


Included SGM technologies

This thermal management techonology provides Advaced Temperature Control monitored via sensors and software, keeping optimal LED junction temperatures, and ensuring maximum reliability for long-term use. The ThermalDriveTM system includes cutting-edge heat removal via passive thermal tecniques and active forced-air cooling (depending on the product), specifically designed to maintain LED efficiency while extending fixture's lifetime.

SGM uses Full Range Calibration in all LED fixtures over CIE space and black body curve, measured via spectrometer and SGM Illumination Lab software. To provide the best user experience, SGM's Color Match procedure ensures accurate wavelength reproduction within the product range via colored LEDs, dichroic filters, or CMY mixing (depending on the product); all of them specified to match the SGM color palette.

SGM's integrated patented Dehumidification process eliminates humidity and breaks down corrosive molecules deriving from polluted air to avoid destructive corrosion. Inbuilt dehumidifiers constantly remove trapped hydrogen from inside of the lighting fixture in a solid estate electrolytic process with no moving parts. The DryTechTM procedure is also based on a Ingress Protection rating of 65 or 66 (depending on the fixture), intended as a full protection against dust and other particles, while ensuring protection against direct water jets.


Optical Data
LED expected lifetime 50,000 hours
Lightsource 24 LEDs total, 5 Red, 5 Green, 5 Blue, 9 White
Native lens options 2.3°
Color temperature range 2000K - 10000K
Efficacy 10 lm/W
Light output all LEDs on 2615 lm
Lumen per kilogram 174 lm / Kg
Lux @ 10m 14176 lux
Lux @ 3m 157516 lux
Lux @ 5m 56706 lux
Native beam angle(s) 2.3°
Native field angle(s) 4.2°
Preliminary light output all LEDs on 2615 lm
Color options Black - RAL 9004
Custom color - Any RAL
White - RAL 9010
Effective Projected Area 1.79 Square ft
IK rating IK06
IP class IP66
Lens material PMMA
Material Aluminium
Tempered Glass
Net dimensions 497 x 166 x 305 mm
Net dimensions inches 19.6 x 6.5 x 12 inches
Net weight 15 kg (33.1 lbs)
Color calibration SGM proprietary, full color calibration
Dehumidifier Base / Head
Dimming 12 DMX-controllable curves (smooth fade in / fast response / low-end extended range)
Emulation mode / effect Tungsten response emulation
Color Filter Emulation
Built-in color presets, display selectable
Other Studio DMX mode(s)
Versapath color engine
LED frequency control over DMX
Tilt 209°
Tilt locking system Locking system with angle indicator
Electrical protection Overload protection with automatic recover
Input voltage, absolute max. rating 90 - 305 VAC; 50 / 60 Hz
Input voltage, nominal 100 - 277 VAC; 50 / 60 Hz
Max inrush current 230VAC 70 A
Max power consumption 250 W
Max power thru @ 100 V 17 A
Max power thru @ 230 V 14 A
Power factor 0.92 PF (230 V)
Power Supply Unit Inbuilt IP 67 Auto-ranging electronic switch-mode
Standby power consumption 7 W
Programming and Control
16-bit control Dimmer, Red, Green, Blue, White
DMX channels 3, 4, 6, 8, 10, 22
DMX modes 6
Protocol CRMX, W-DMX™ G2, W-DMX™ G3, W-DMX™ G4, W-DMX™ G4S
Setting and addressing OLED graphical display / 4 buttons
Standalone mode Quick Color
3 programs with up to 24 scenes
Wireless DMX Lumen Radio with RDM
DMX data in/out IP67 XLR 5-pin connector, Female
IP67 XLR 5-pin connector, Male
Power Power input connector & link-thru
Mounting point 3 x two quarter-turn locking points for two or three Omega Brackets
Orientation Any
Rigging possibilities Hanging (Omega Bracket included) or ceiling/wall mount (optional)
Safety features Bottom mount for safety wire
Minimum distance to combustible materials: 0.3 meter (11 in).
Cooling Active, Forced Air, Temperature-regulated
Humidity (max.) 98 %
Temperature range, operating -40°C to 50°C
Temperature range, start-up -20°C to 50°C
Temperature range, storage -40°C to 80°C
Thermal protection Automatic overtemperature protection
Total heat dissipation, max power 853 BTU per hour
Total heat dissipation, standby 23.9 BTU per hour
Included items
Included items 2 Omega bracket with quater-turn fasteners
2 m IP66 power cable pigtail
Safety instructions and installation quick guide
Conforms To
CE - 2014/30/EU: EMC Directive EN 55103-2
EN 55015
EN 61547
EN 61000-3-2
EN 61000-3-3
EN 55032
CE - 2014/35/EU: Low Voltage Directive EN 60598-1
EN 60598-2-17
EN 62471
EN 60529
RoHS2 Directive 2011/65/EU
UL UL Std. 1573

Certifications & classifications


Ordering information

Product name Item number
I-6 RGBW, 2.5°, Std, BL 80031700
I-6 RGBW, 2.5°, Std, WH 80031701
I-6 RGBW, 2.5°, Std, CU 80031702
I-6 RGBW, 3.4°, Std, BL 80031720
I-6 RGBW, 3.4°, Std, WH 80031721
I-6 RGBW, 3.4°, Std, CU 80031722
Accessories Item number
Omega Bracket with 1/4-turn fasteners 83060602
Power cable with IP connector 07860275
SGM USB uploader cable 83062011
Vacuum Test Kit 83061136
4-way Barndoors for P·6 / Q-8 / I-6 83061173
