Standard

VP Touring Power + Data Joiner

Item no. 83062049

Info shortcuts
  • Intended to join power and data in one single VP cable
  • Suitable for easy rigging via clamps or straps

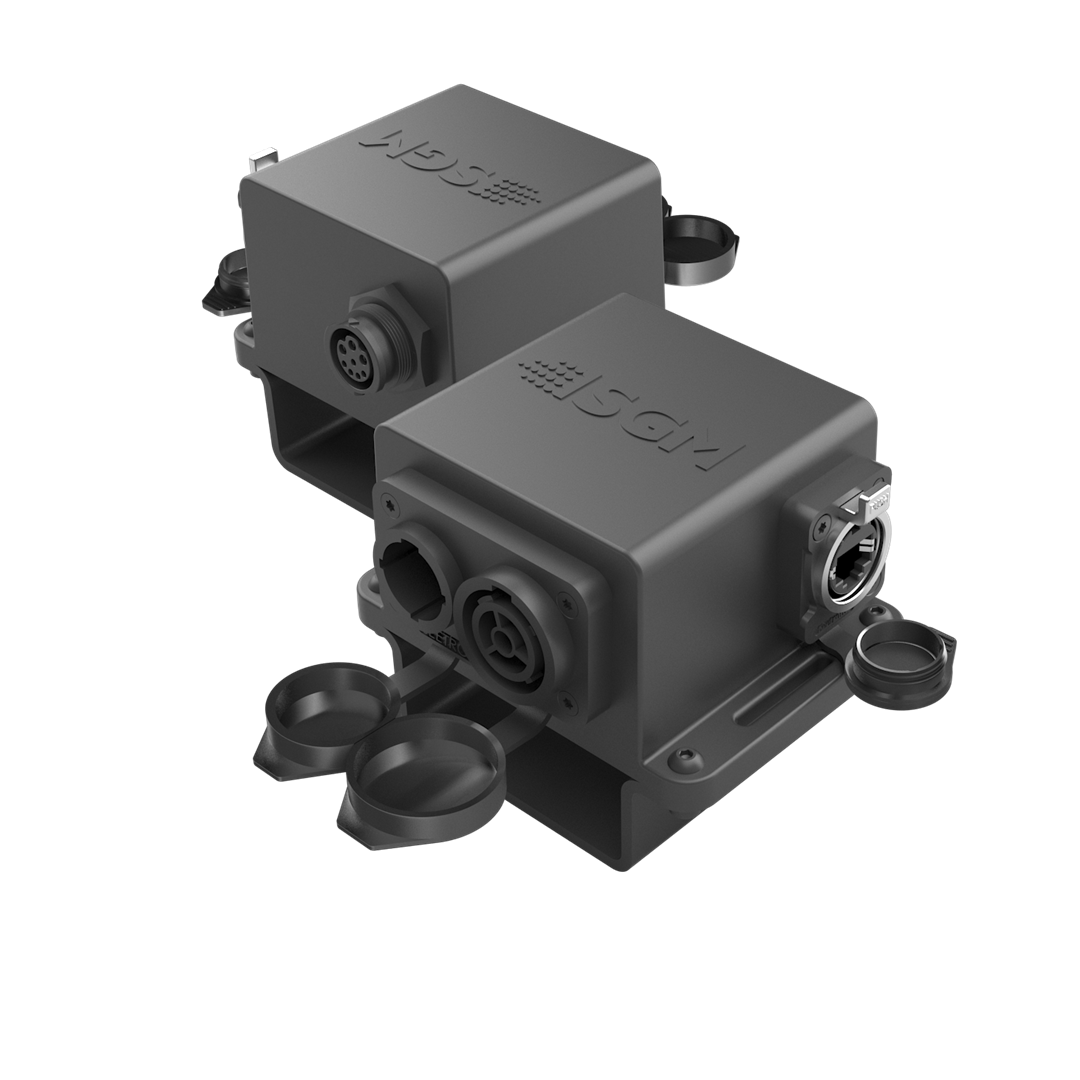

The VP Touring Power + Data Joiner is designed to join power and data for a daisy chain of VP fixtures in a stage lighting environment or in a temporary event. One VP Power + Data Joiner can send power and data to no less than 65 VPL 1220-20 units at 230V. It includes a mounting plate for standardized touring clamps, and two slots in the sides for attaching a safety strap.

The VP Power + Data Joiner is a connection box with a VP female chassis connector, two True1 chassis connectors (Power in / Power thru), and one RJ45 chassis connector. This item must be installed before the first VP fixture in the cabled string and before the circuit breaker (for power) and VP Processor (for data). SGM always recommends to install a 10amp type B circuit breaker for each string of cabled VPL luminaires.

Specification

Physical
Net dimensions L x H x W 104 x 55 x 78 mm
Net dimensions L x H x W (inches) 4.1 x 2.2 x 3.1 inches
Electrical
Input voltage, nominal 200 - 240 VAC; 50 / 60 Hz
Max power thru @ 230 V 10 A
Connections
Data / Power input RJ45 connector IP66
Data / Power output 8 pin X-Lok connector IP68
Power Power input connector & link-thru
Thermal
Temperature range, operating -20°C to 60°C
Temperature range, operating max 60 °C
Temperature range, operating min -20 °C
Temperature range, start-up -20°C to 60°C
Temperature range, storage -40°C to 80°C
Included items
Included items Mounting bracket (incl. screws)

Download

Certifications & classifications

SGM LIGHT
SGM LIGHT
SGM LIGHT

Ordering information

Accessories Item number
Power cable with IP connector 07860275
